Ring Blower LG- Series (Single-phase, 1Φ)

Ring Blower LG-006A 1/8HP 1Φ

Features

• Made of aluminum alloy, lightweight and long service life
• High pressure, low vibration, low noise
• Oil-free and pollution-free
• All series of products have passed CSA certification



Applications: Printing Machines, Dishwashers, Powders and Granules Transport , Feeders, Heat Dissipation, Ultrasonic Cleaning, Film Extrusion Machines, Engineering Sites, Automotive Workplace, Vacuum Adsorption, Vacuum Handling, Powder Filling, Fermentation Tanks, Debris Absorption, Computer Lasers Cutting Machines, Combustion Machines, Plastic Machines, Food Processing Machines, Dust collectors, Woodworking Machines, Dryers, Incinerator, Mechanical Cooling, etc.

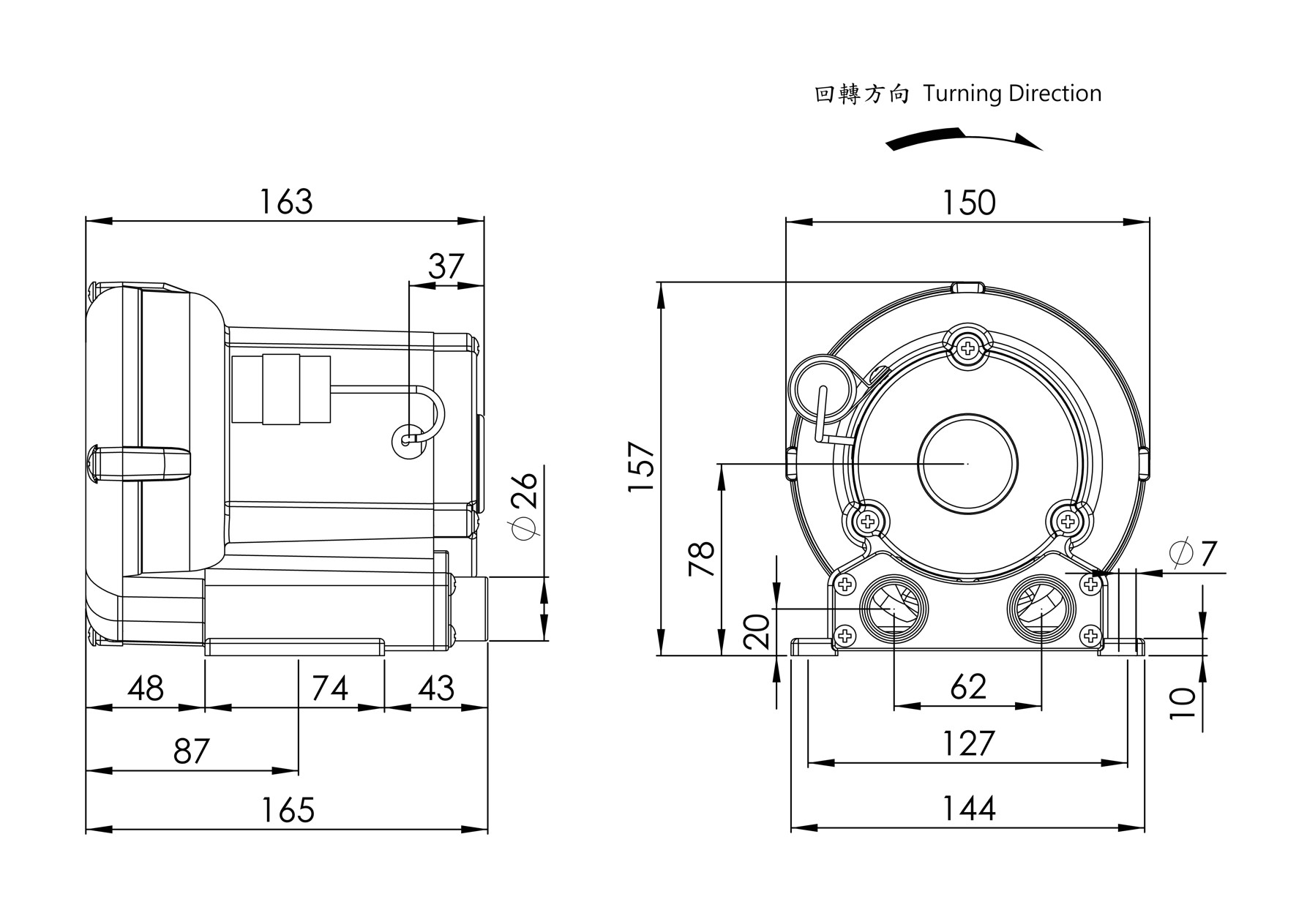

Dimension (mm)

Ring Blower    LG-006A    1/8HP  1ΦRing Blower    LG-006A    1/8HP  1Φ

Specifications

Frequency(Hz)
50/60
Power(kW)
0.06/0.1
Inlet/Outlet(inch)
26mm
Max. Pressure (mmAq)
230/290
Max. Air Flow (m³/min)
0.31/0.5
Max. Vacuum Pressure (mmAq)
170/230
Phase (Φ)
Single-phase (1Φ)
Pole
2P
Speed (RPM)
2800/3500
Rated Current(A)(110/220V)
1.5/0.7(50Hz); 1.5/0.8(60Hz)
Weight (kg)
5
Dimension L×W×H (mm)
165x150x157
Noise Value dB(A)
52/55
