Heat-resistant Ring Blower LG-DL Series (Three-phase, 3Φ)
Ring Blower LG-2006DL 20HP 3Φ
Features
• Waterproof and heat-insulating, resistant to high temperatures of 250 ° C (Including 1/2HP-30HP)
• Made of aluminum alloy, lightweight and long service life
• High pressure, low vibration, low noise
• Oil-free and pollution-free
• The motor has passed IE3 energy efficiency certification(Including 1HP and above)
• All series of products have passed CSA certification
• Made of aluminum alloy, lightweight and long service life
• High pressure, low vibration, low noise
• Oil-free and pollution-free
• The motor has passed IE3 energy efficiency certification(Including 1HP and above)
• All series of products have passed CSA certification
Applications: Printing Machines, Dishwashers, Powders and Granules Transport , Feeders, Heat Dissipation, Ultrasonic Cleaning, Film Extrusion Machines, Engineering Sites, Automotive Workplace, Vacuum Adsorption, Vacuum Handling, Powder Filling, Fermentation Tanks, Debris Absorption, Computer Lasers Cutting Machines, Combustion Machines, Plastic Machines, Food Processing Machines, Dust collectors, Woodworking Machines, Dryers, Incinerator, Mechanical Cooling, etc.

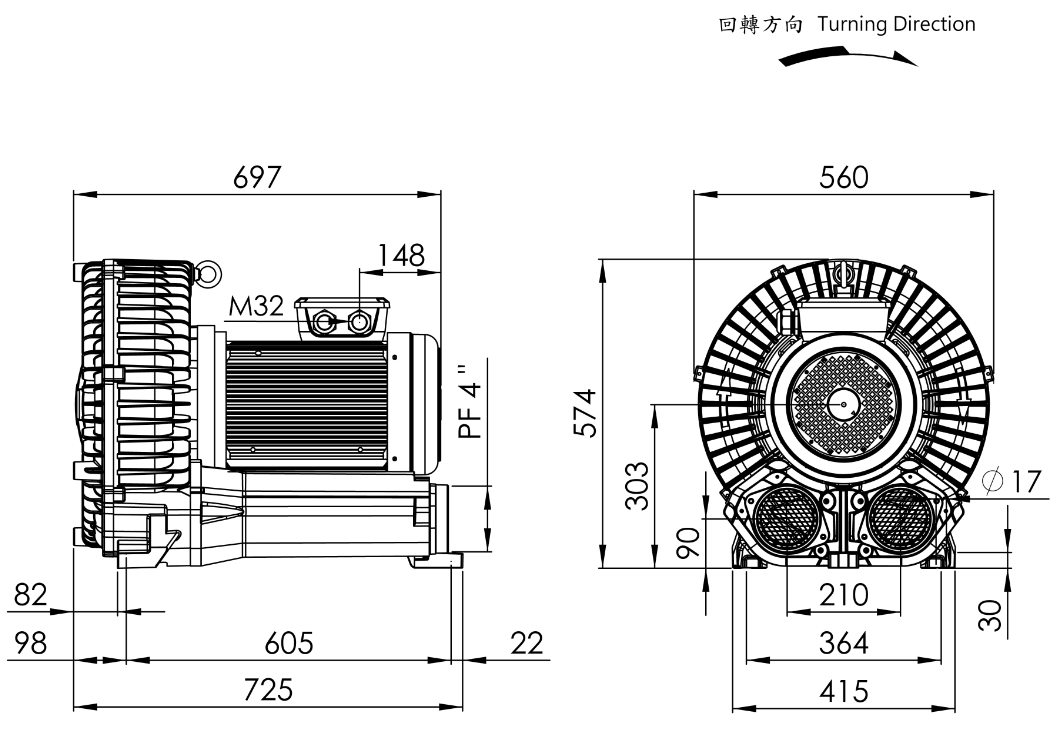

Dimension (mm)
Specifications
Frequency(Hz)
50/60
50/60
Power(kW)
14/15
14/15
Inlet/Outlet(inch)
4
4
Max. Pressure (mmAq)
3600/4850
3600/4850
Max. Air Flow (m³/min)
19.5/23.5
19.5/23.5
Max. Vacuum Pressure (mmAq)
2850/3650
2850/3650
Phase (Φ)
Three-phase (3Φ)
Three-phase (3Φ)
Pole
2P
2P
Speed (RPM)
2800/3500
2800/3500
Rated Current(A)(220/380V)
43.6/24.4(50Hz); 61.0/35.3(60Hz)
43.6/24.4(50Hz); 61.0/35.3(60Hz)
Weight (kg)
139
139
Dimension L×W×H (mm)
725x560x574
725x560x574
Noise Value dB(A)
82/87
82/87
