Heat-resistant Ring Blower LG-DL Series (Single-phase, 1Φ)
Ring Blower LG-3068A-DL 1HP 1Φ
Features
• Waterproof and heat-insulating, resistant to high temperatures of 250 ° C (Including 1/2HP-5HP)
• Made of aluminum alloy, lightweight and long service life
• High pressure, low vibration, low noise
• Oil-free and pollution-free
• All series of products have passed CSA certification
• Made of aluminum alloy, lightweight and long service life
• High pressure, low vibration, low noise
• Oil-free and pollution-free
• All series of products have passed CSA certification
Applications: Printing Machines, Dishwashers, Powders and Granules Transport , Feeders, Heat Dissipation, Ultrasonic Cleaning, Film Extrusion Machines, Engineering Sites, Automotive Workplace, Vacuum Adsorption, Vacuum Handling, Powder Filling, Fermentation Tanks, Debris Absorption, Computer Lasers Cutting Machines, Combustion Machines, Plastic Machines, Food Processing Machines, Dust collectors, Woodworking Machines, Dryers, Incinerator, Mechanical Cooling, etc.

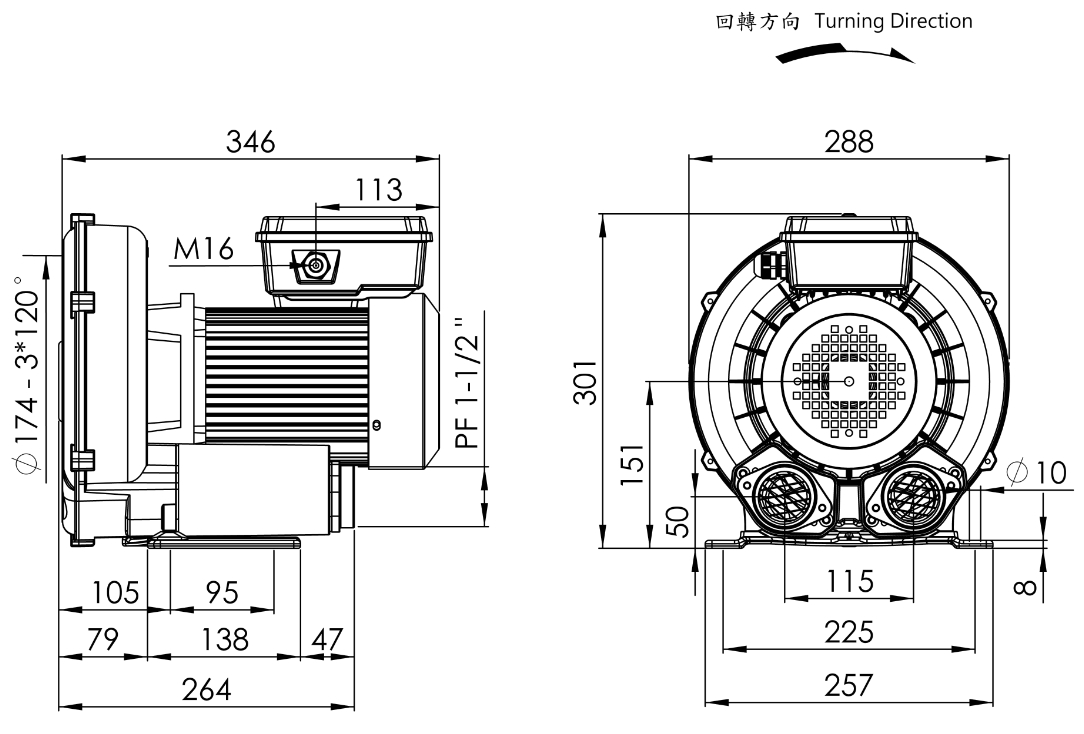

Dimension (mm)
Specifications
Frequency(Hz)
50/60
50/60
Power(kW)
0.8/0.9
0.8/0.9
Inlet/Outlet(inch)
1-1/2
1-1/2
Max. Pressure (mmAq)
1900/2600
1900/2600
Max. Air Flow (m³/min)
2.4/2.7
2.4/2.7
Max. Vacuum Pressure (mmAq)
1500/2000
1500/2000
Phase (Φ)
Single-phase (1Φ)
Single-phase (1Φ)
Pole
2P
2P
Speed (RPM)
2800/3500
2800/3500
Rated Current(A)(110/220V)
12.0/6.2(50Hz); 12.4/6.2(60Hz)
12.0/6.2(50Hz); 12.4/6.2(60Hz)
Weight (kg)
17
17
Dimension L×W×H (mm)
288x288x301
288x288x301
Noise Value dB(A)
66/69
66/69
