Explosion Proof Series

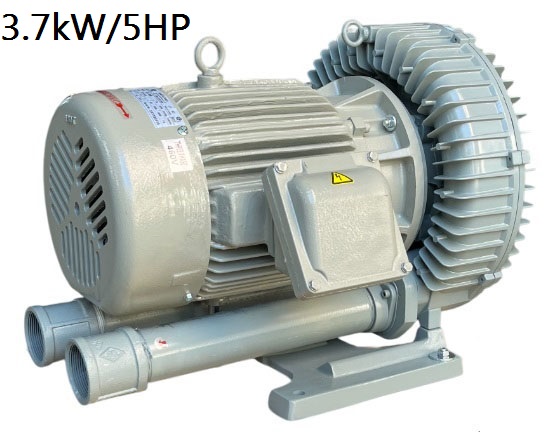

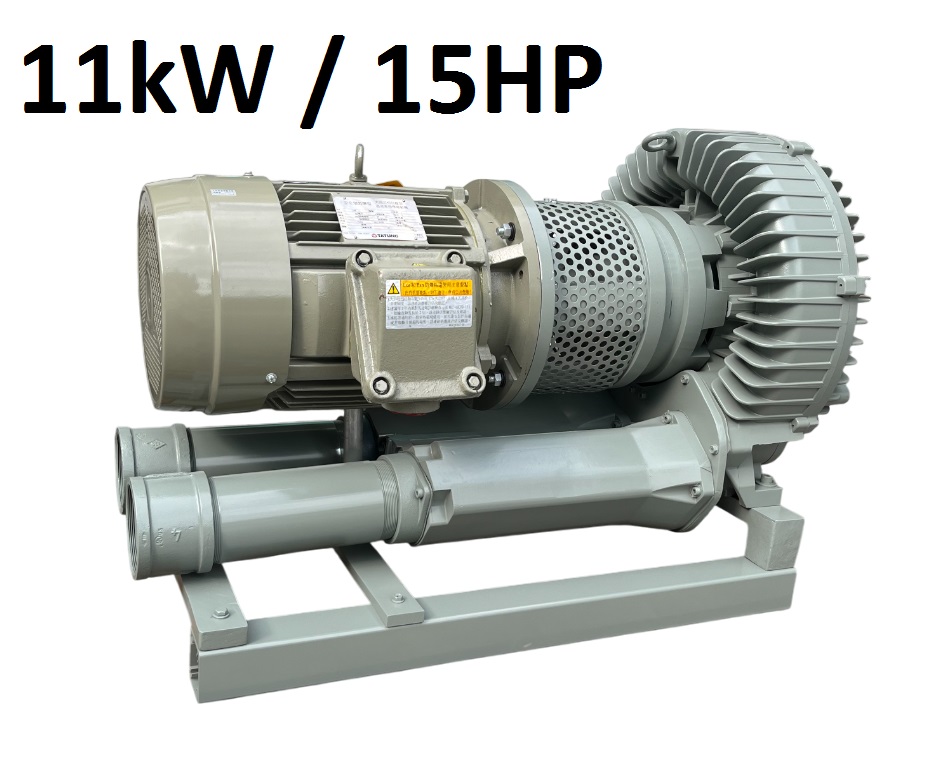

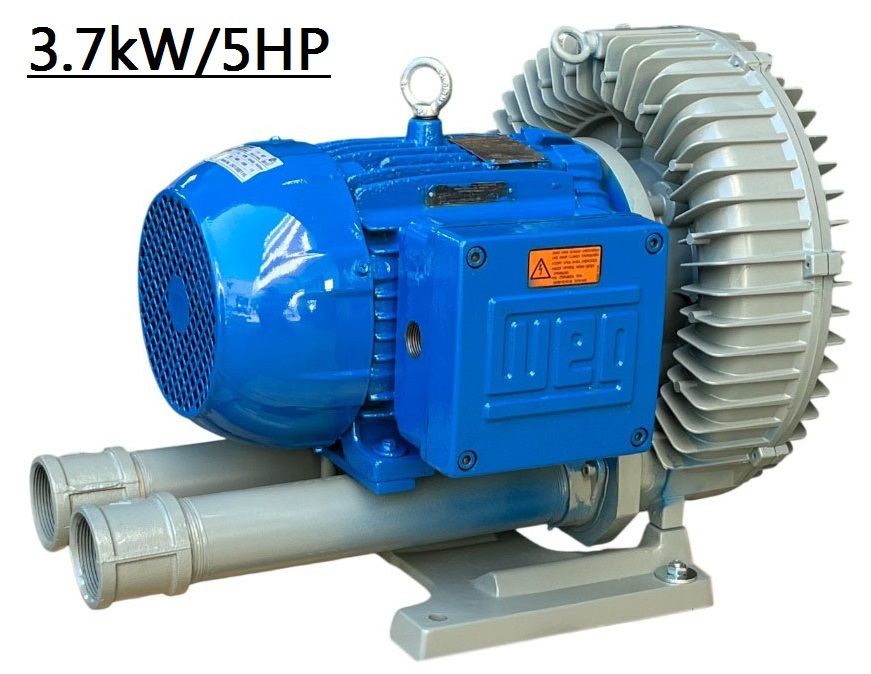

Explosion Proof Ring Blower 1HP-30HP
Features
• Made of aluminum alloy, lightweight and long service life
• High pressure, low vibration, low noise
• Oil-free and pollution-free
• Waterproof and heat-insulating type can be customized, with a temperature resistance of 250°C
• The explosion-proof motor has passed UL and CSA certification
• All series of products have passed CSA certification
• All specifications can be customized
• High pressure, low vibration, low noise
• Oil-free and pollution-free
• Waterproof and heat-insulating type can be customized, with a temperature resistance of 250°C
• The explosion-proof motor has passed UL and CSA certification
• All series of products have passed CSA certification
• All specifications can be customized
Applications: Printing Machines, Dishwashers, Powders and Granules Transport , Feeders, Heat Dissipation, Ultrasonic Cleaning, Film Extrusion Machines, Engineering Sites, Automotive Workplace, Vacuum Adsorption, Vacuum Handling, Powder Filling, Fermentation Tanks, Debris Absorption, Computer Lasers Cutting Machines, Combustion Machines, Plastic Machines, Food Processing Machines, Dust collectors, Woodworking Machines, Dryers, Incinerator, Mechanical Cooling, etc.
Dimension (mm)
Specifications
Frequency(Hz)
50/60
50/60
Power(kW)
1HP - 30HP
1HP - 30HP
Inlet/Outlet(inch)
1.5 / 2 / 2.5 / 4
1.5 / 2 / 2.5 / 4
Max. Pressure (mmAq)
2000 - 7000
2000 - 7000
Max. Air Flow (m³/min)
2 - 23
2 - 23
Max. Vacuum Pressure (mmAq)
1600 - 4300
1600 - 4300
Phase (Φ)
Three-phase (3Φ)
Three-phase (3Φ)
Pole
2P
2P
Speed (RPM)
2800/3500
2800/3500
Rated Current(A)(220/380V)
2.9 - 69 (60Hz)
2.9 - 69 (60Hz)
Weight (kg)
30 - 200
30 - 200
Dimension L×W×H (mm)
800x560x574
800x560x574
Noise Value dB(A)
69 - 87
69 - 87
