Oil Mist Collector
Oil Mist Collector LG-250A-D 1HP 3Φ Vertical
Features
FEATURES:
•Easy to install and not to take up space
•Low vibration and will not affect the operation of machine tools
•Low noise, high air flow and pressure, strong suction.
•Made of aluminum alloy material, lightweight, sturdy and durable, with a long service life
•High filtration efficiency, can be piped, and the piping method is flexible.

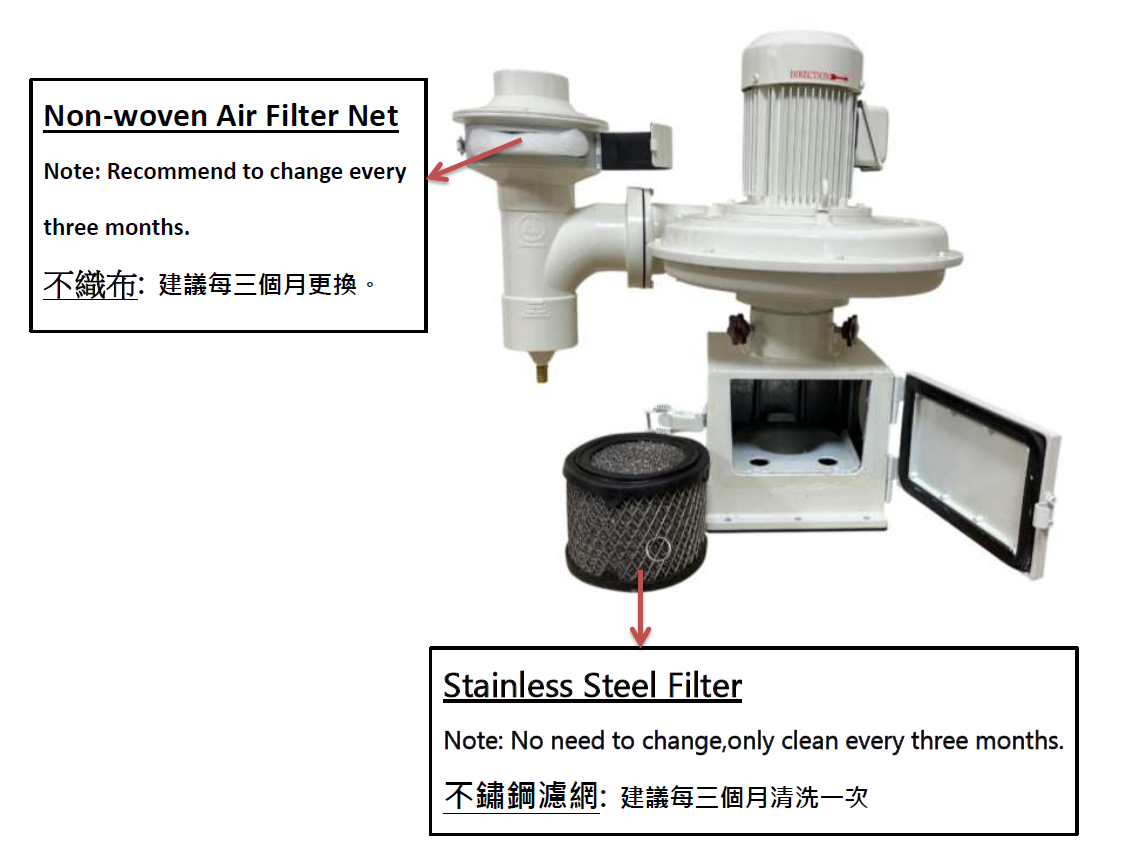

•Easy to maintain, the stainless steel filter is easy to clean and can be reused.
•All series of products have passed CSA certification
•Easy to install and not to take up space
•Low vibration and will not affect the operation of machine tools
•Low noise, high air flow and pressure, strong suction.
•Made of aluminum alloy material, lightweight, sturdy and durable, with a long service life
•High filtration efficiency, can be piped, and the piping method is flexible.
•Easy to maintain, the stainless steel filter is easy to clean and can be reused.
•All series of products have passed CSA certification

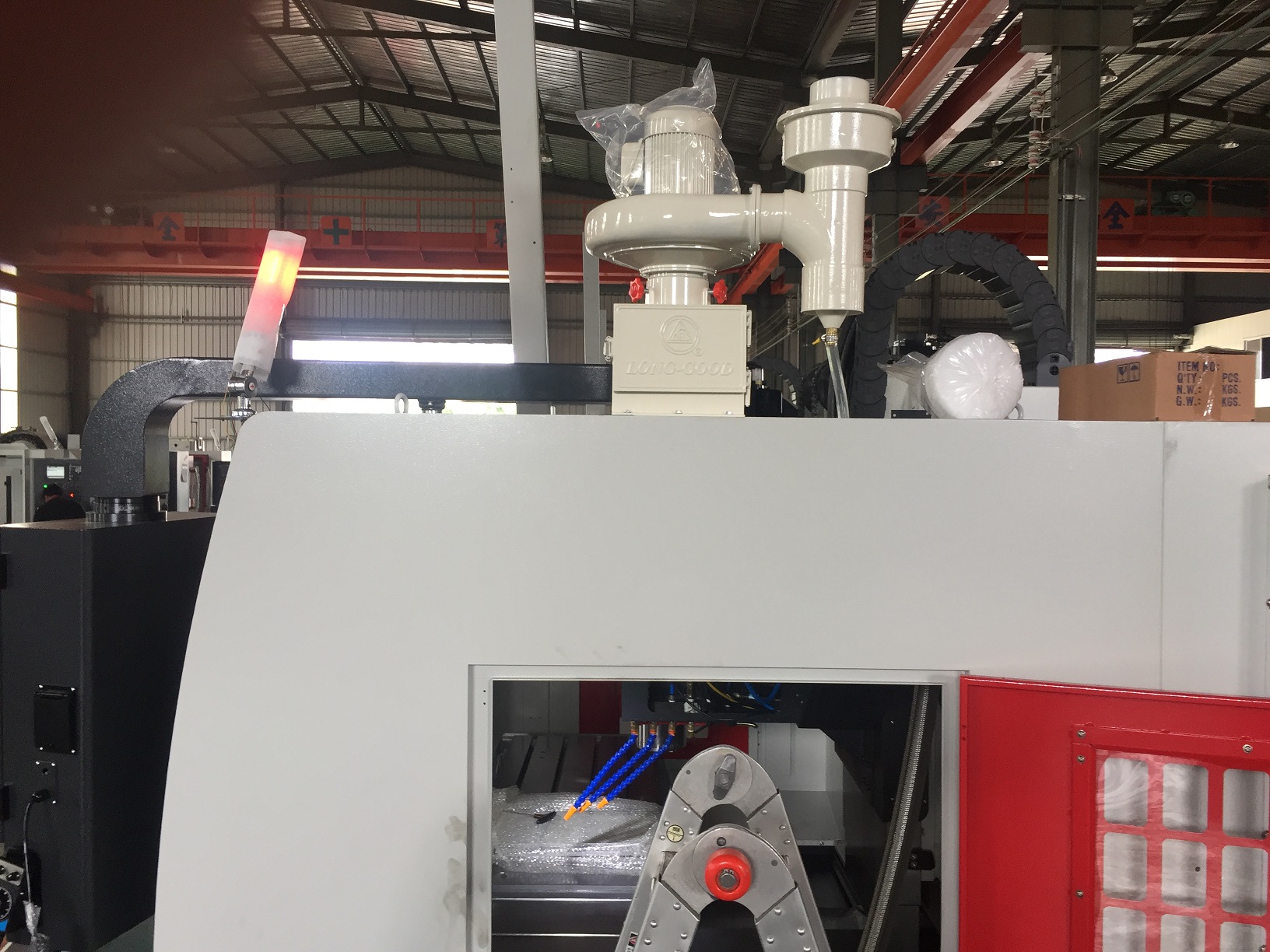

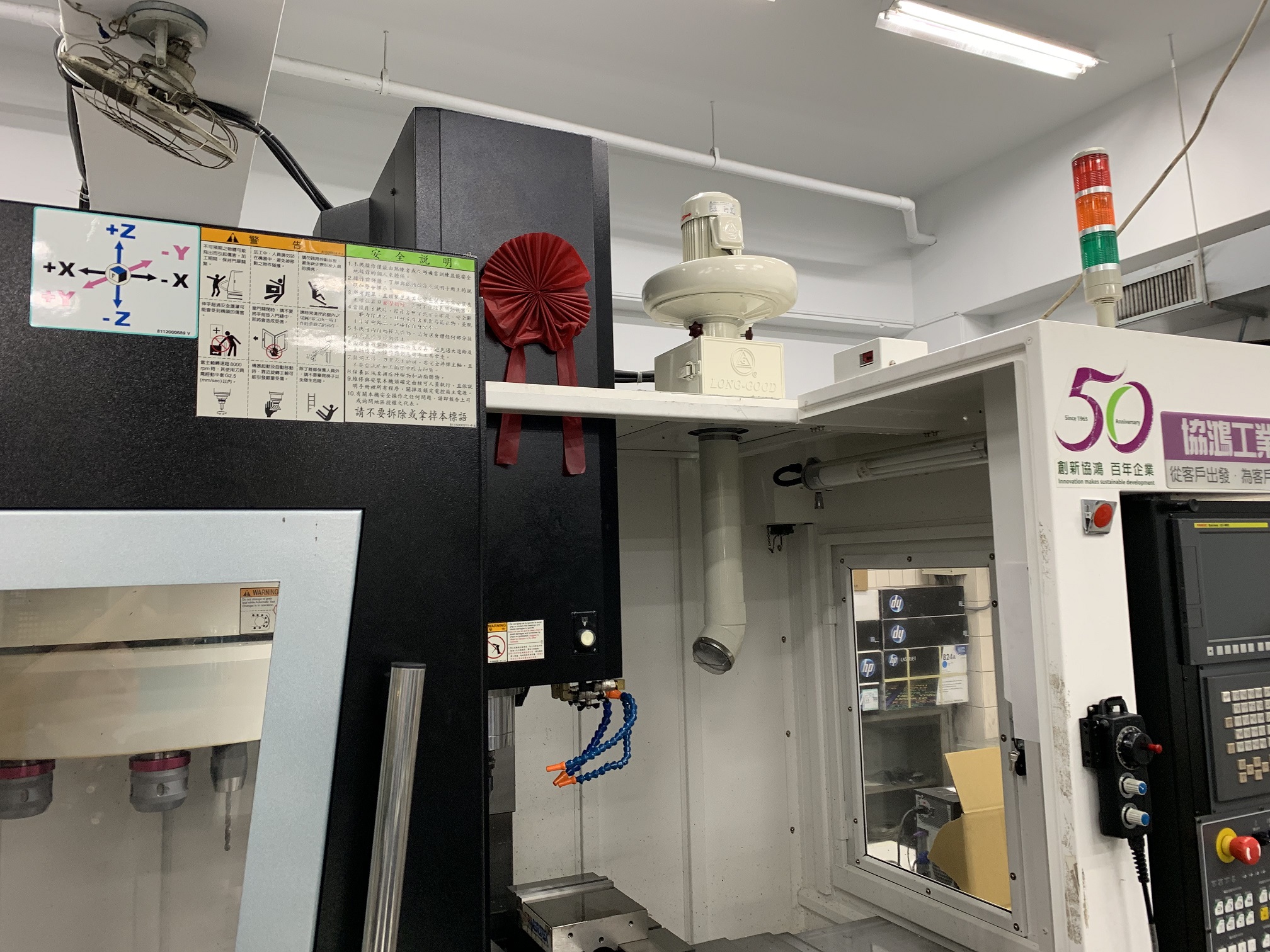

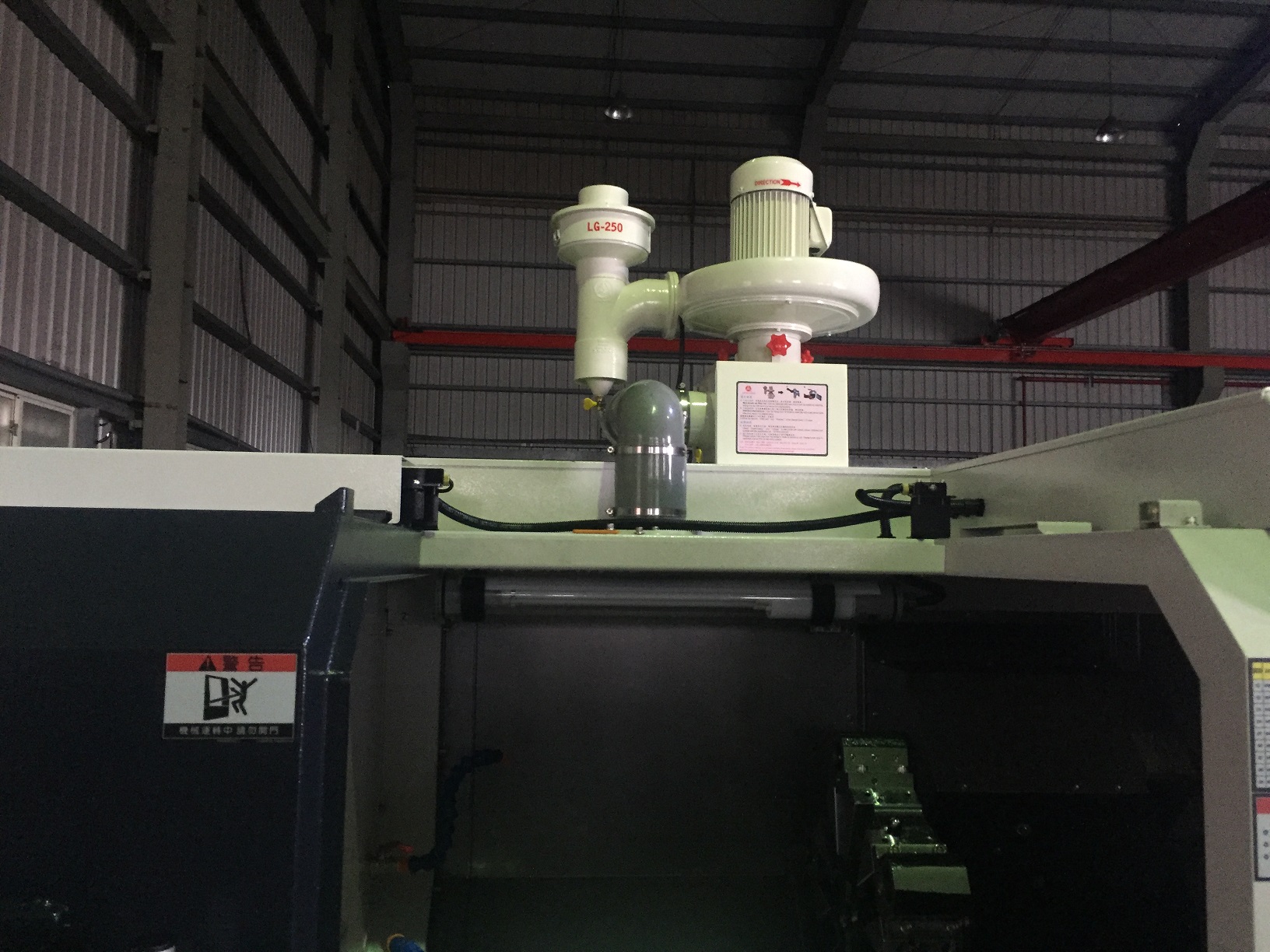

Applications : CNC lathes, CNC milling machines, CNC grinding machines, Part cleaning machines, High-pressure cleaning machines, Automated production lines, and other places that require suction of mist.

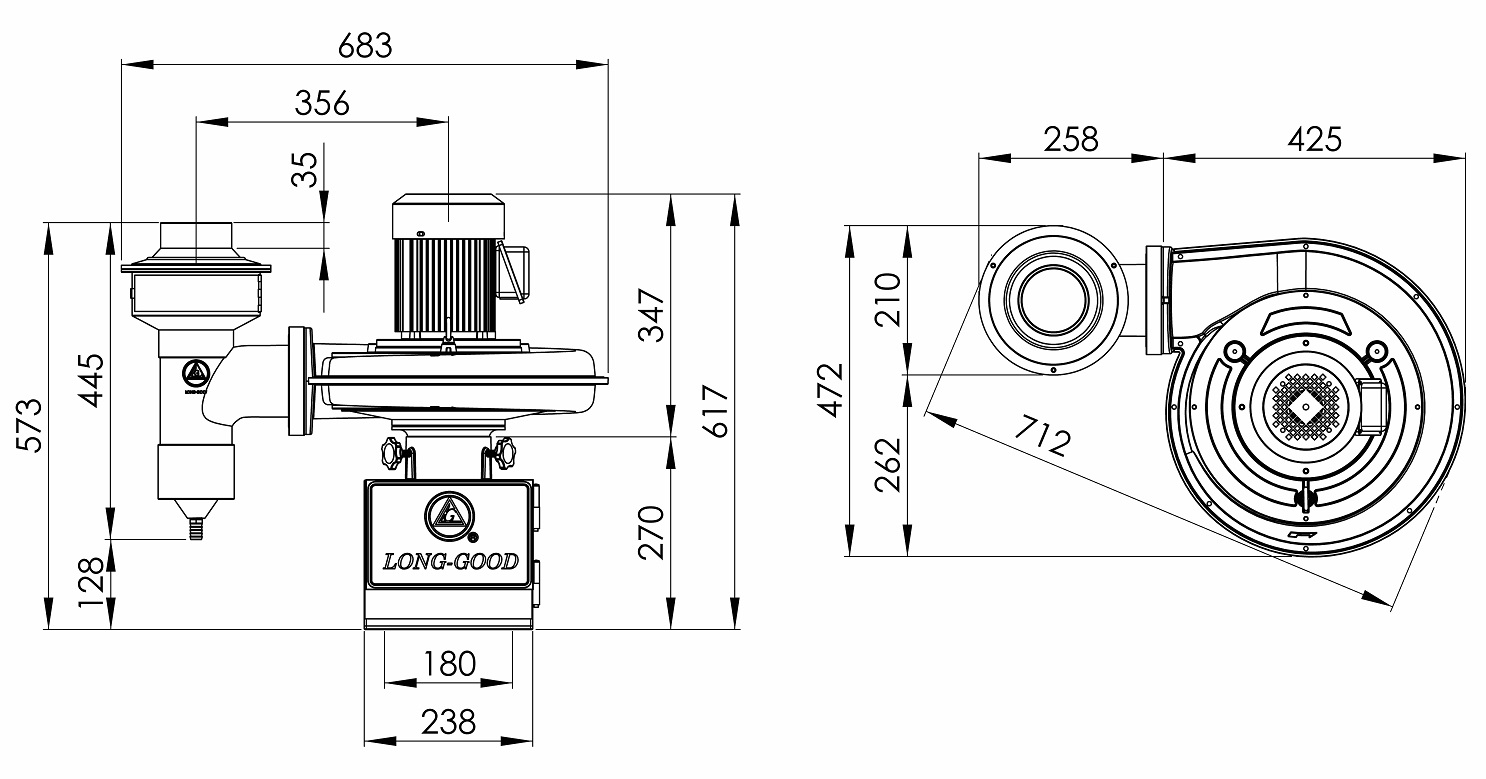

Dimension (mm)
Specifications
Frequency (Hz)
50/60
50/60
Power (kW)
0.75
0.75
Inlet/Outlet (inch)
4"(100mm)/4"(100mm)
4"(100mm)/4"(100mm)
Max. Air Flow (m³/min)
13 / 15
13 / 15
Max. Pressure (mmAq)
210 / 230
210 / 230
Phase (Φ)
Three-phase (3Φ)
Three-phase (3Φ)
Pole
2P
2P
Speed (RPM)
2800/3500
2800/3500
Rated Current(A)(220/380V)
3.7/2.1 (50Hz); 4.2/2.4 (60Hz)
3.7/2.1 (50Hz); 4.2/2.4 (60Hz)
Weight (kg)
38
38
Dimension L×W×H (mm)
691*712*617
691*712*617
Noise Value dB(A)
62 / 68
62 / 68
