Ring Blower LG- Series (Three-phase, 3Φ)
Ring Blower LG-2506 25HP 3Φ
Features
• Made of aluminum alloy, lightweight and long service life
• High pressure, low vibration, low noise
• Oil-free and pollution-free
• Waterproof and heat-insulating type can be customized, with a temperature resistance of 250°C
• The motor has passed IE3 energy efficiency certification
• All series of products have passed CSA certification
• High pressure, low vibration, low noise
• Oil-free and pollution-free
• Waterproof and heat-insulating type can be customized, with a temperature resistance of 250°C
• The motor has passed IE3 energy efficiency certification
• All series of products have passed CSA certification
Applications: Printing Machines, Dishwashers, Powders and Granules Transport , Feeders, Heat Dissipation, Ultrasonic Cleaning, Film Extrusion Machines, Engineering Sites, Automotive Workplace, Vacuum Adsorption, Vacuum Handling, Powder Filling, Fermentation Tanks, Debris Absorption, Computer Lasers Cutting Machines, Combustion Machines, Plastic Machines, Food Processing Machines, Dust collectors, Woodworking Machines, Dryers, Incinerator, Mechanical Cooling, etc.

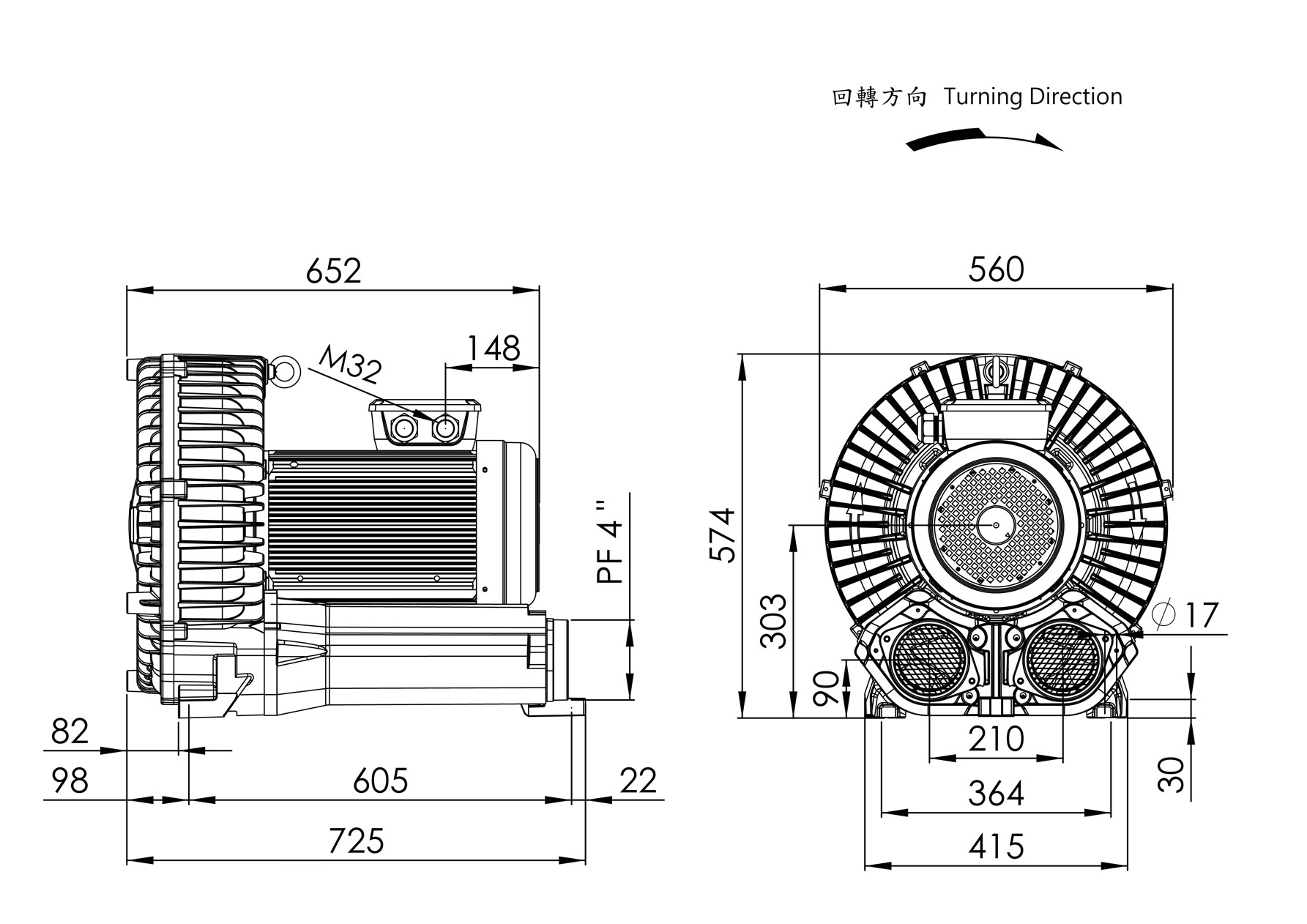

Dimension (mm)
Specifications
Frequency(Hz)
50/60
50/60
Power(kW)
17/18.5
17/18.5
Inlet/Outlet(inch)
4
4
Max. Pressure (mmAq)
3700/5000
3700/5000
Max. Air Flow (m³/min)
19.5/23.5
19.5/23.5
Max. Vacuum Pressure (mmAq)
2900/3700
2900/3700
Phase (Φ)
Three-phase (3Φ)
Three-phase (3Φ)
Pole
2P
2P
Speed (RPM)
2800/3500
2800/3500
Rated Current(A)(220/380V)
58.5/35.0(50Hz); 70.5/40.5(60Hz)
58.5/35.0(50Hz); 70.5/40.5(60Hz)
Weight (kg)
155
155
Dimension L×W×H (mm)
725x560x574
725x560x574
Noise Value dB(A)
82/87
82/87
