Ring Blower LG- Series (Single-phase, 1Φ)

Ring Blower LG-6068A 3HP 1Φ

Features

• Made of aluminum alloy, lightweight and long service life
• High pressure, low vibration, low noise
• Oil-free and pollution-free
• Waterproof and heat-insulating type can be customized, with a temperature resistance of 250°C
• All series of products have passed CSA certification

Applications: Printing Machines, Dishwashers, Powders and Granules Transport , Feeders, Heat Dissipation, Ultrasonic Cleaning, Film Extrusion Machines, Engineering Sites, Automotive Workplace, Vacuum Adsorption, Vacuum Handling, Powder Filling, Fermentation Tanks, Debris Absorption, Computer Lasers Cutting Machines, Combustion Machines, Plastic Machines, Food Processing Machines, Dust collectors, Woodworking Machines, Dryers, Incinerator, Mechanical Cooling, etc.

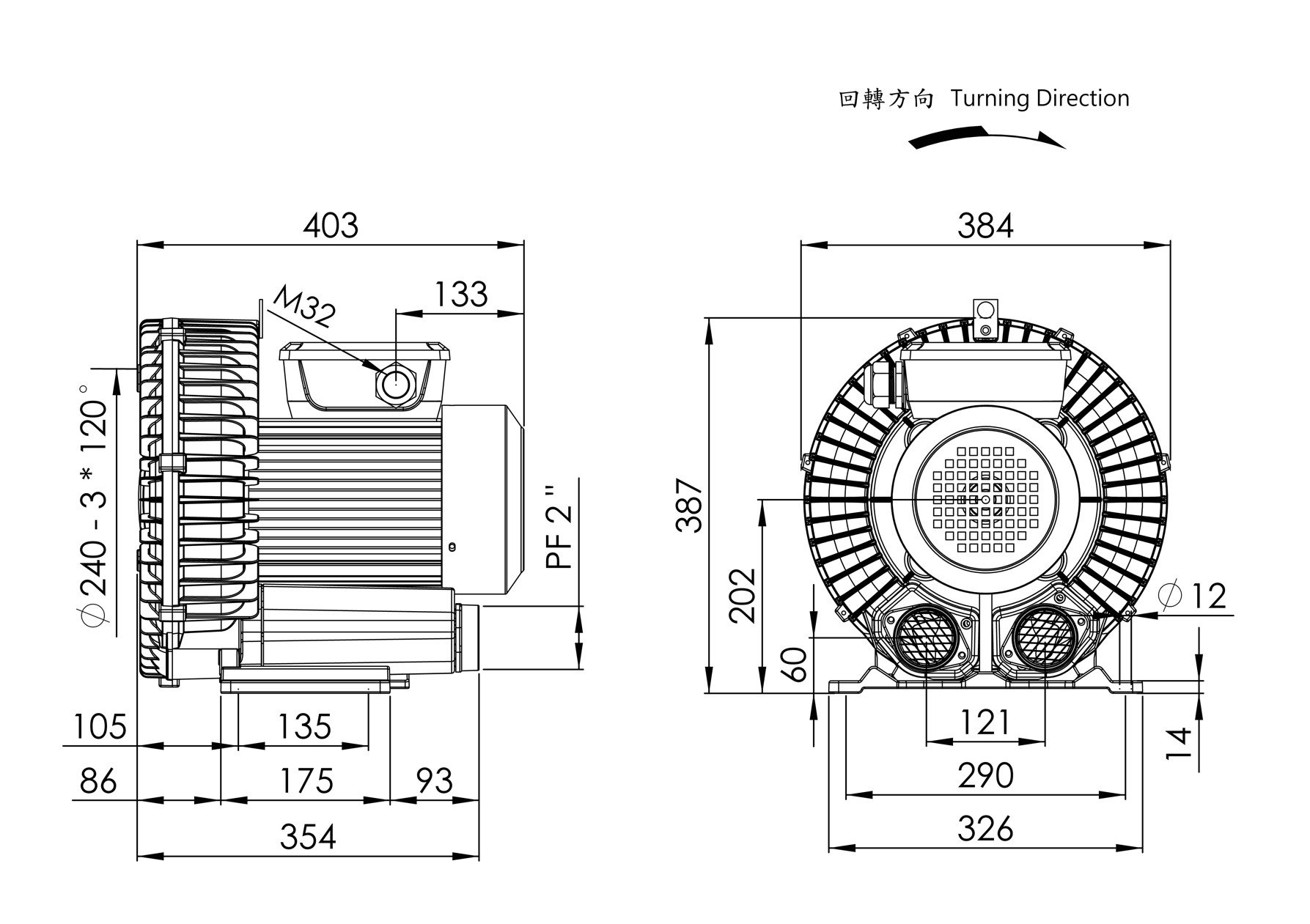

Dimension (mm)

Ring Blower    LG-6068A    3HP  1ΦRing Blower    LG-6068A    3HP  1Φ

Specifications

Frequency(Hz)
50/60
Power(kW)
2.2/2.6
Inlet/Outlet(inch)
2
Max. Pressure (mmAq)
3350/4600
Max. Air Flow (m³/min)
6/6.5
Max. Vacuum Pressure (mmAq)
2600/3300
Phase (Φ)
Single-phase (1Φ)
Pole
2P
Speed (RPM)
2800/3500
Rated Current(A)(220V)
16(50Hz); 19(60Hz)
Weight (kg)
39
Dimension L×W×H (mm)
403x384x387
Noise Value dB(A)
75/78
