Ring Blower LG- Series (Single-phase, 1Φ)
Ring Blower LG-106A 1/6HP 1Φ
Features
• Made of aluminum alloy, lightweight and long service life
• High pressure, low vibration, low noise
• Oil-free and pollution-free
• All series of products have passed CSA certification
• High pressure, low vibration, low noise
• Oil-free and pollution-free
• All series of products have passed CSA certification
Applications: Printing Machines, Dishwashers, Powders and Granules Transport , Feeders, Heat Dissipation, Ultrasonic Cleaning, Film Extrusion Machines, Engineering Sites, Automotive Workplace, Vacuum Adsorption, Vacuum Handling, Powder Filling, Fermentation Tanks, Debris Absorption, Computer Lasers Cutting Machines, Combustion Machines, Plastic Machines, Food Processing Machines, Dust collectors, Woodworking Machines, Dryers, Incinerator, Mechanical Cooling, etc.

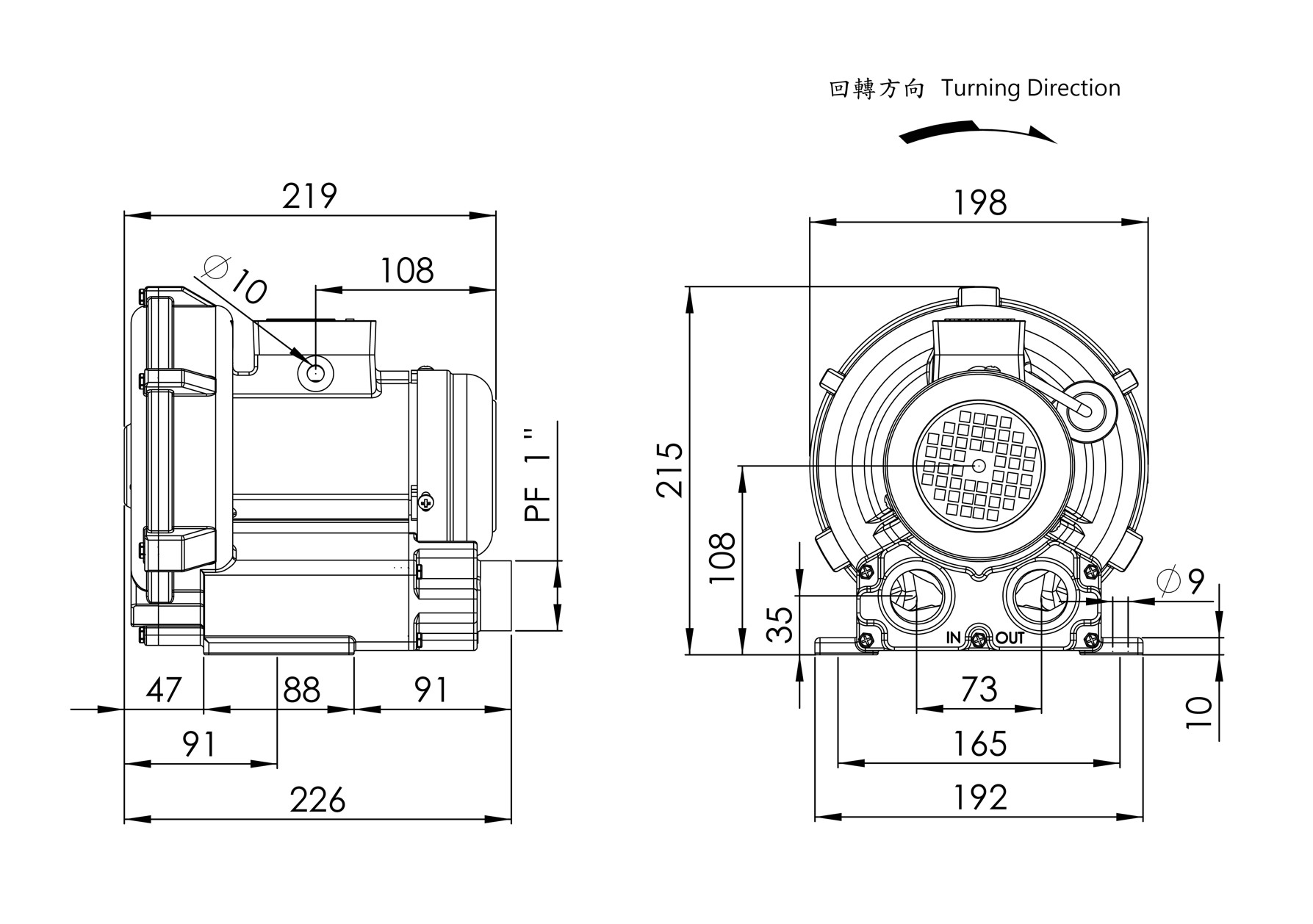

Dimension (mm)
Specifications
Frequency(Hz)
50/60
50/60
Power(kW)
0.09/0.13
0.09/0.13
Inlet/Outlet(inch)
1
1
Max. Pressure (mmAq)
500/650
500/650
Max. Air Flow (m³/min)
0.8/0.9
0.8/0.9
Max. Vacuum Pressure (mmAq)
490/650
490/650
Phase (Φ)
Single-phase (1Φ)
Single-phase (1Φ)
Pole
2P
2P
Speed (RPM)
2800/3500
2800/3500
Rated Current(A)(110/220V)
2.0/1.0(50Hz); 2.2/1.1(60Hz)
2.0/1.0(50Hz); 2.2/1.1(60Hz)
Weight (kg)
8
8
Dimension L×W×H (mm)
226x198x215
226x198x215
Noise Value dB(A)
52/55
52/55
