Heat-resistant Ring Blower LG-DL Series (Single-phase, 1Φ)
Ring Blower LG-5068A-DL 2.5HP 1Φ
Features
• Waterproof and heat-insulating, resistant to high temperatures of 250 ° C (Including 1/2HP-5HP)
• Made of aluminum alloy, lightweight and long service life
• High pressure, low vibration, low noise
• Oil-free and pollution-free
• All series of products have passed CSA certification
• Made of aluminum alloy, lightweight and long service life
• High pressure, low vibration, low noise
• Oil-free and pollution-free
• All series of products have passed CSA certification
Applications: Printing Machines, Dishwashers, Powders and Granules Transport , Feeders, Heat Dissipation, Ultrasonic Cleaning, Film Extrusion Machines, Engineering Sites, Automotive Workplace, Vacuum Adsorption, Vacuum Handling, Powder Filling, Fermentation Tanks, Debris Absorption, Computer Lasers Cutting Machines, Combustion Machines, Plastic Machines, Food Processing Machines, Dust collectors, Woodworking Machines, Dryers, Incinerator, Mechanical Cooling, etc.

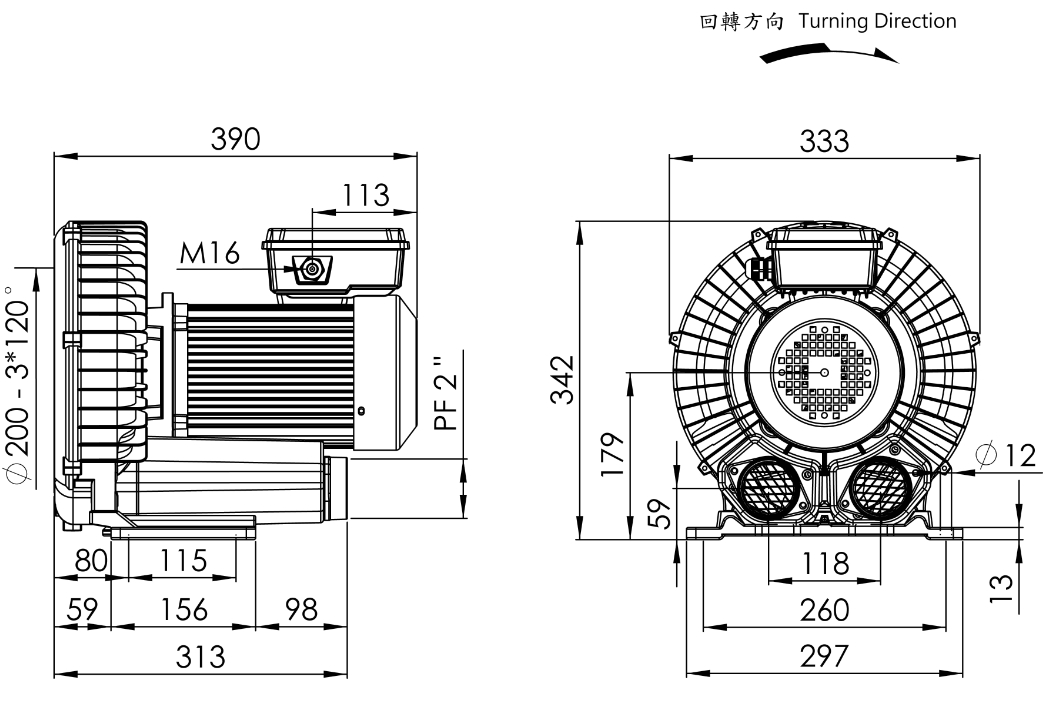

Dimension (mm)
Specifications
Frequency(Hz)
50/60
50/60
Power(kW)
1.75/1.9
1.75/1.9
Inlet/Outlet(inch)
2
2
Max. Pressure (mmAq)
2800/3800
2800/3800
Max. Air Flow (m³/min)
4.2/4.6
4.2/4.6
Max. Vacuum Pressure (mmAq)
2300/2600
2300/2600
Phase (Φ)
Single-phase (1Φ)
Single-phase (1Φ)
Pole
2P
2P
Speed (RPM)
2800/3500
2800/3500
Rated Current(A)(220V)
10.5(50Hz); 12(60Hz)
10.5(50Hz); 12(60Hz)
Weight (kg)
25
25
Dimension L×W×H (mm)
330x333x342
330x333x342
Noise Value dB(A)
72/76
72/76
