Oil Mist Collector - LG- Series (Three-phase, 3Φ)
Oil Mist Collector LG-300B-D 2HP 3Φ Horizontal
Features
FEATURES:
• Easy to install and not to take up space
• Low vibration, will not affect the operation of the tool machine
• Made of aluminum alloy material, lightweight, sturdy and durable, with a long service life
• High filtration efficiency, can be piped, and the piping method is flexible.

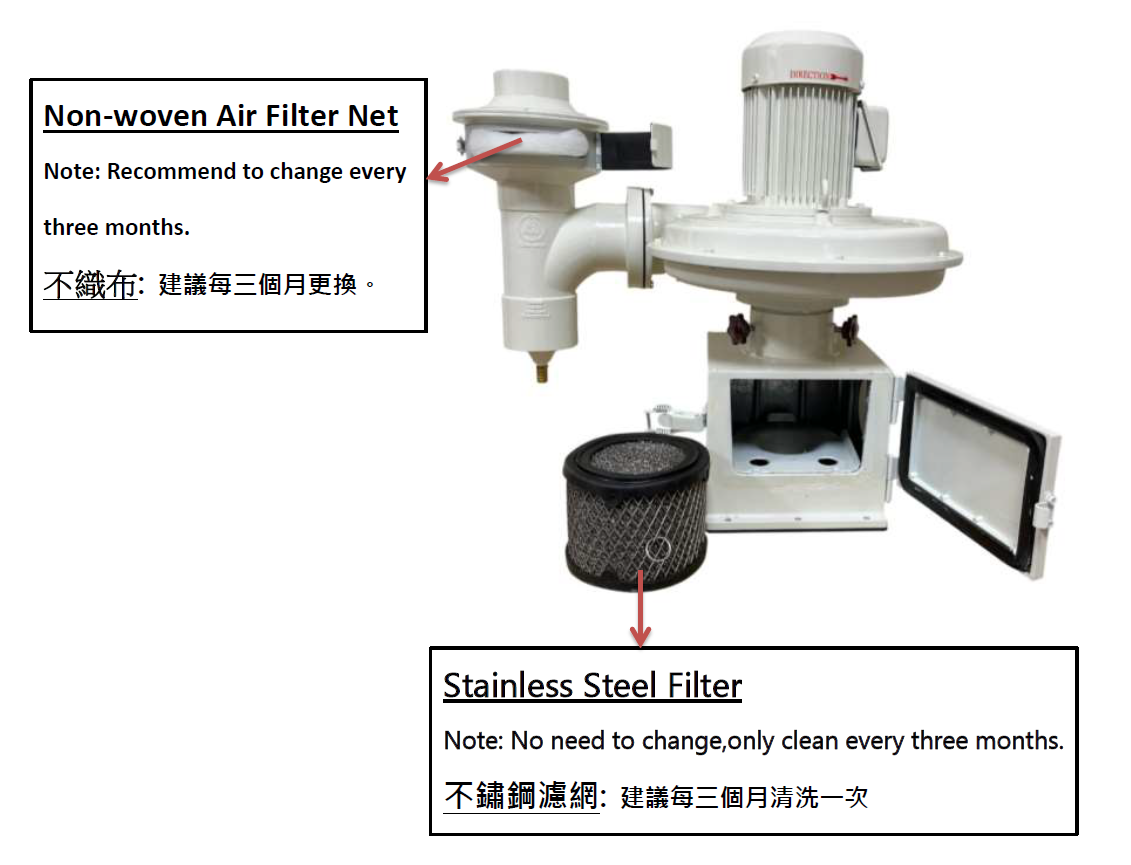

• Easy to maintain, the filter element and filter screen are easy to clean and can be reused.
• All series of products have passed CSA certification
• Easy to install and not to take up space
• Low vibration, will not affect the operation of the tool machine
• Made of aluminum alloy material, lightweight, sturdy and durable, with a long service life
• High filtration efficiency, can be piped, and the piping method is flexible.
• Easy to maintain, the filter element and filter screen are easy to clean and can be reused.
• All series of products have passed CSA certification

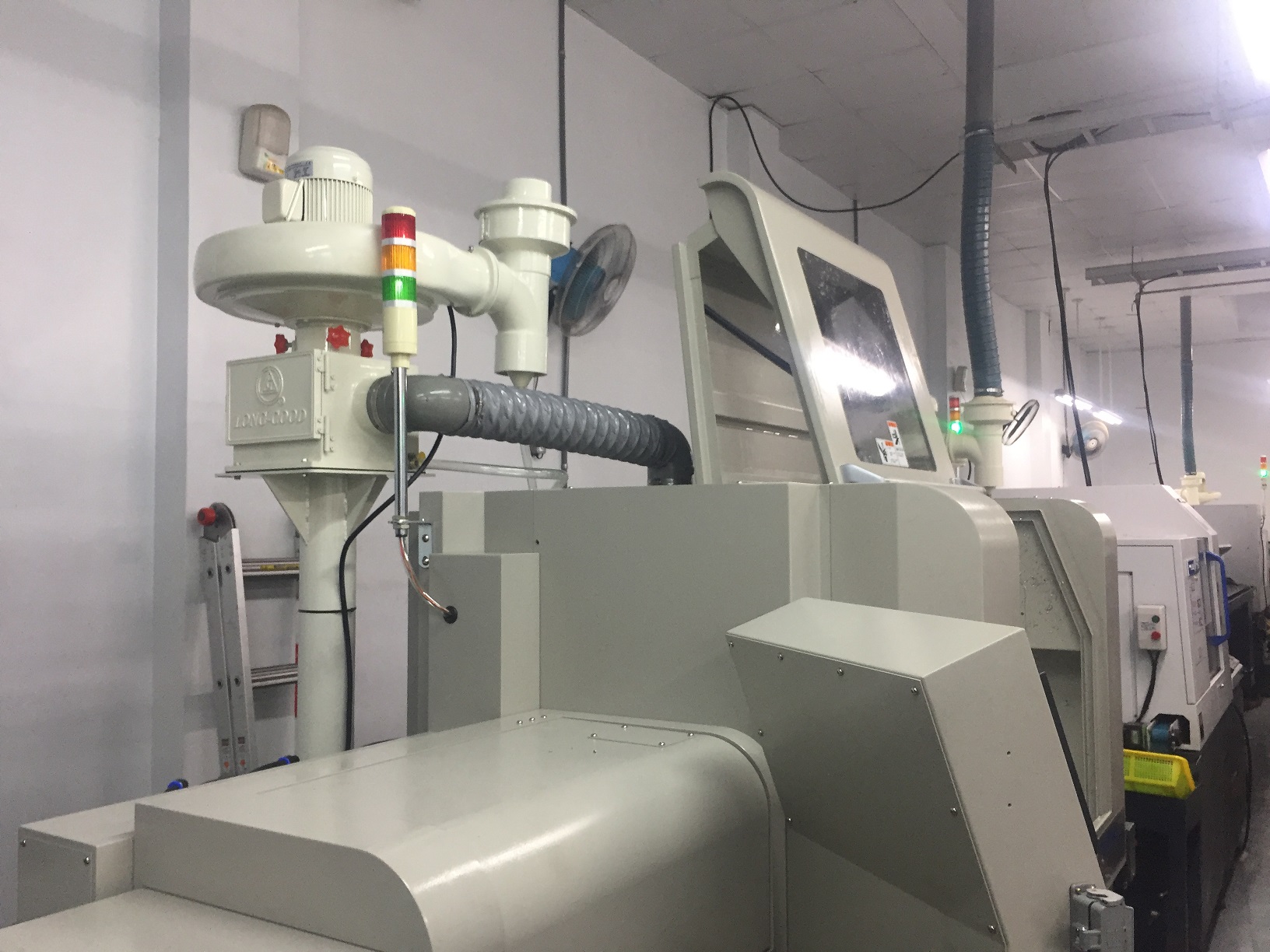

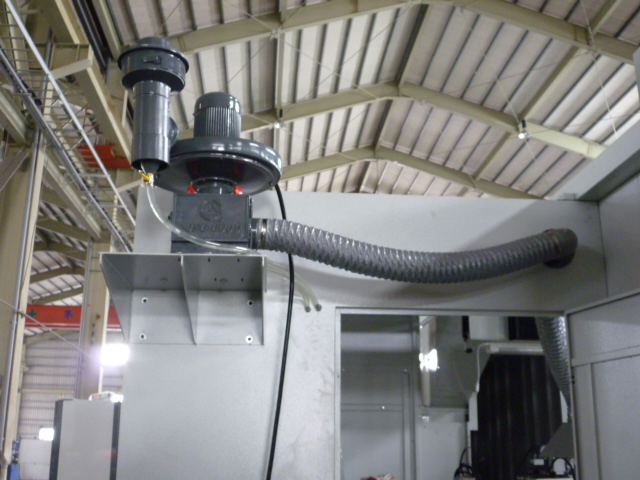

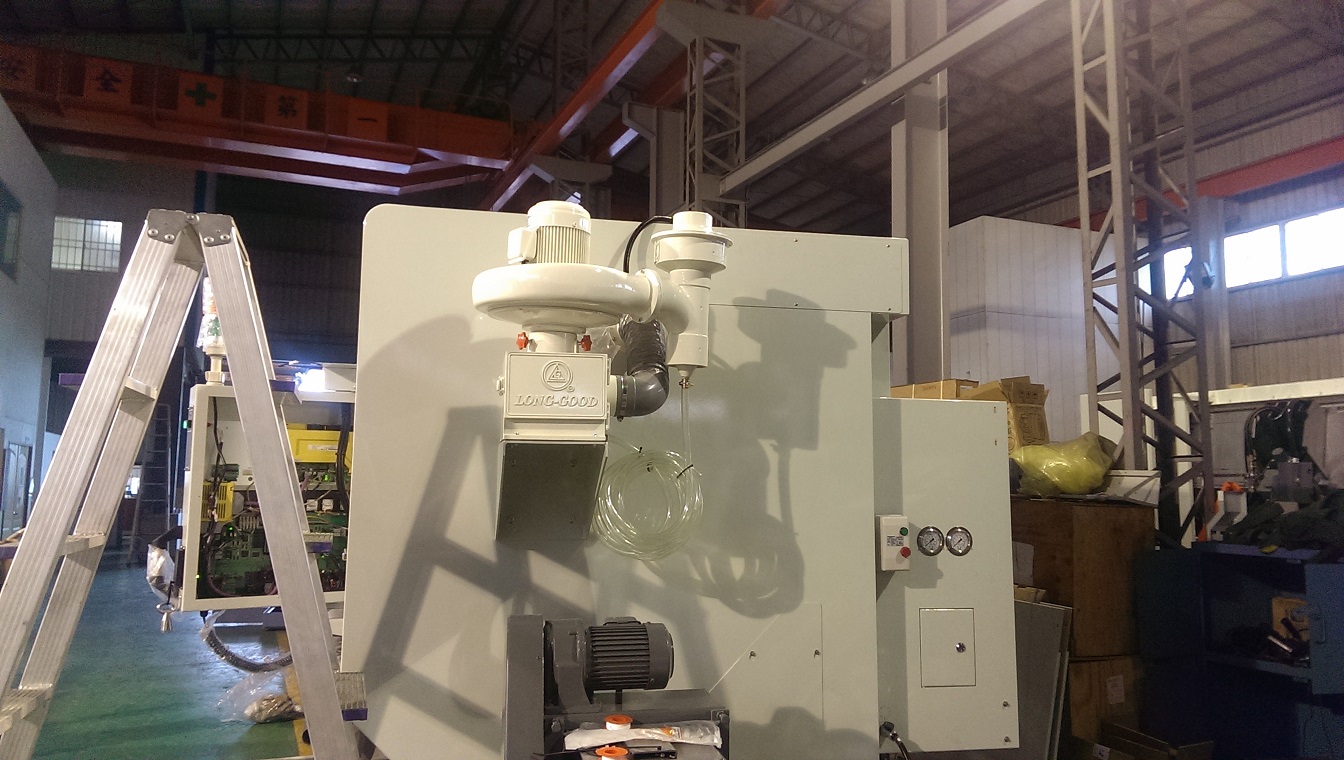

Applications : CNC lathes, CNC milling machines, CNC grinding machines, Part cleaning machines, High-pressure cleaning machines, Automated production lines, and other places that require suction of mist.

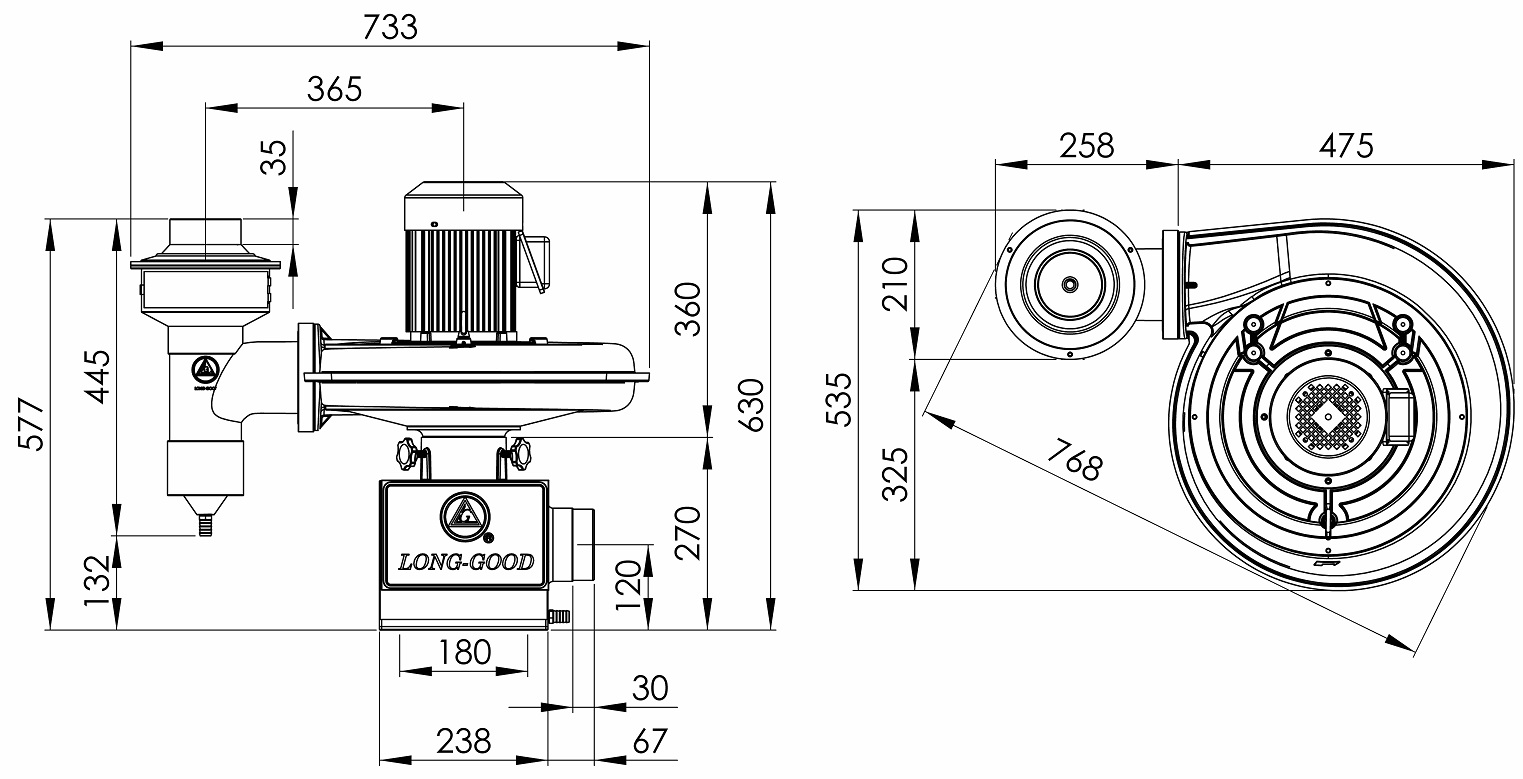

Dimension (mm)
Specifications
Frequency (Hz)
50/60
50/60
Power (kW)
1.5
1.5
Inlet/Outlet (inch)
4"(100mm)/4"(100mm)
4"(100mm)/4"(100mm)
Max. Air Flow (m³/min)
18 / 22
18 / 22
Max. Pressure (mmAq)
230 / 320
230 / 320
Phase (Φ)
Three-phase (3Φ)
Three-phase (3Φ)
Pole
2P
2P
Speed (RPM)
2800/3500
2800/3500
Rated Current(A)(220/380V)
6.3 /3.7 (50Hz); 6.5 /3.7 (60Hz)
6.3 /3.7 (50Hz); 6.5 /3.7 (60Hz)
Weight (kg)
40
40
Dimension L×W×H (mm)
731*768*630
731*768*630
Noise Value dB(A)
72 / 80
72 / 80
