Oil Mist Collector - LG- Series (Three-phase, 3Φ)
Oil Mist Collector LG-200B-D 1/2HP 3Φ Horizontal
Features
FEATURES:
•Easy to install and not to take up space
•Low vibration and will not affect the operation of machine tools
•Low noise, high air flow and pressure, strong suction.
•Made of aluminum alloy material, lightweight, sturdy and durable, with a long service life
•High filtration efficiency, can be piped, and the piping method is flexible.

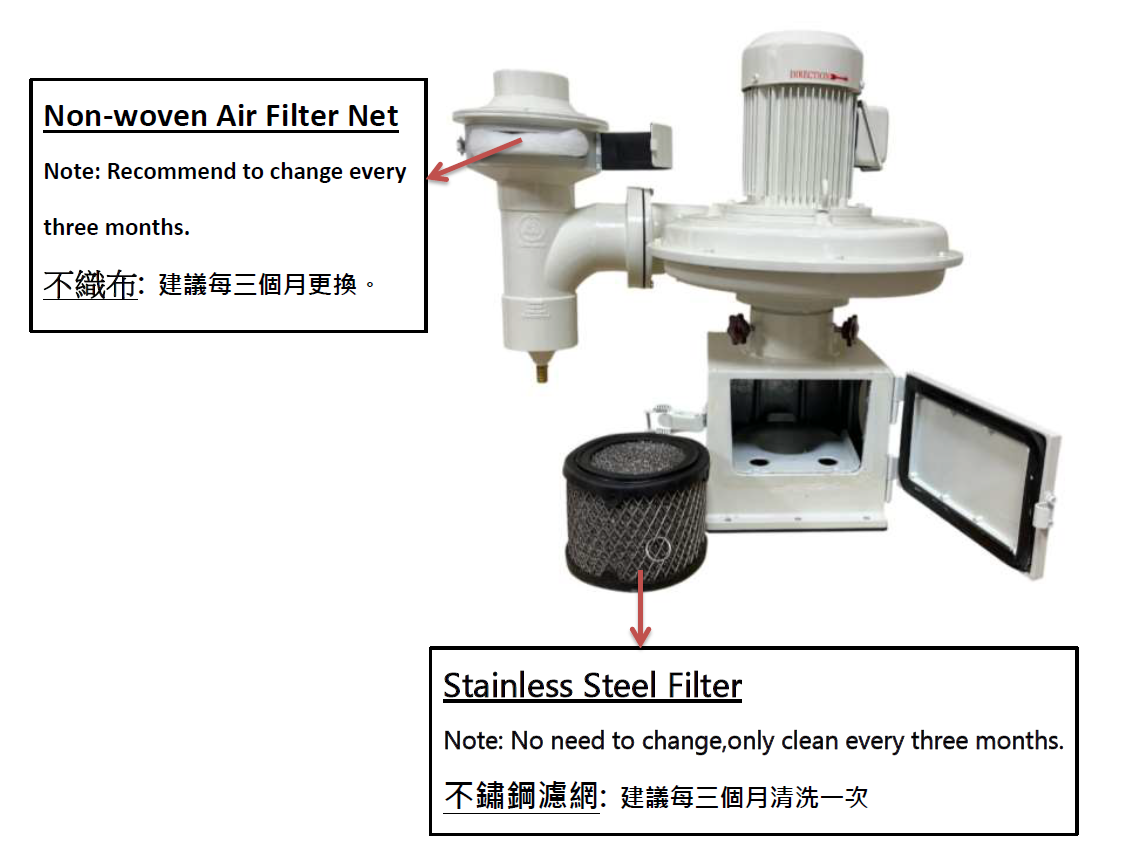

•Easy to maintain, the stainless steel filter is easy to clean and can be reused.
•All series of products have passed CSA certification
•Easy to install and not to take up space
•Low vibration and will not affect the operation of machine tools
•Low noise, high air flow and pressure, strong suction.
•Made of aluminum alloy material, lightweight, sturdy and durable, with a long service life
•High filtration efficiency, can be piped, and the piping method is flexible.
•Easy to maintain, the stainless steel filter is easy to clean and can be reused.
•All series of products have passed CSA certification

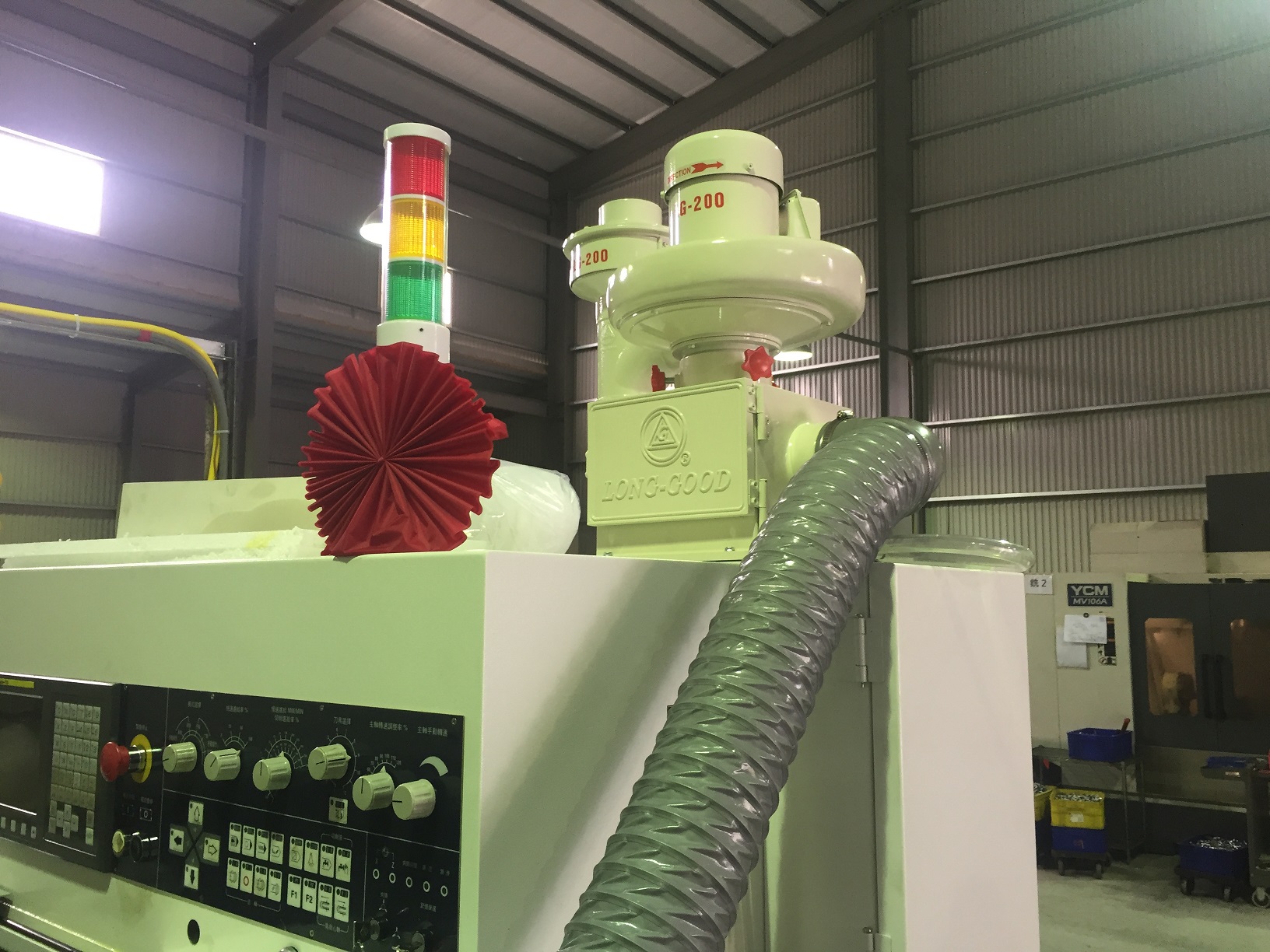

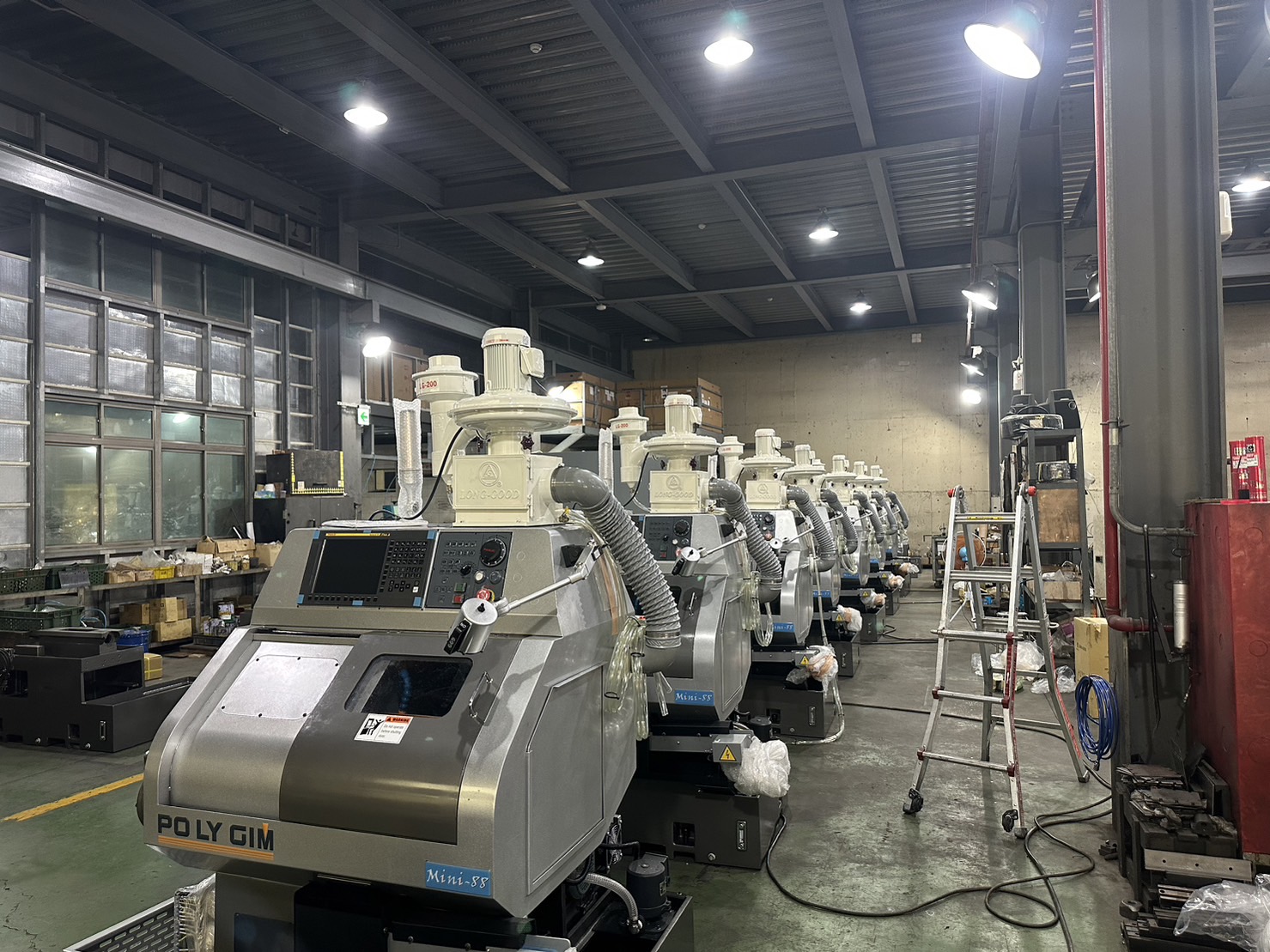

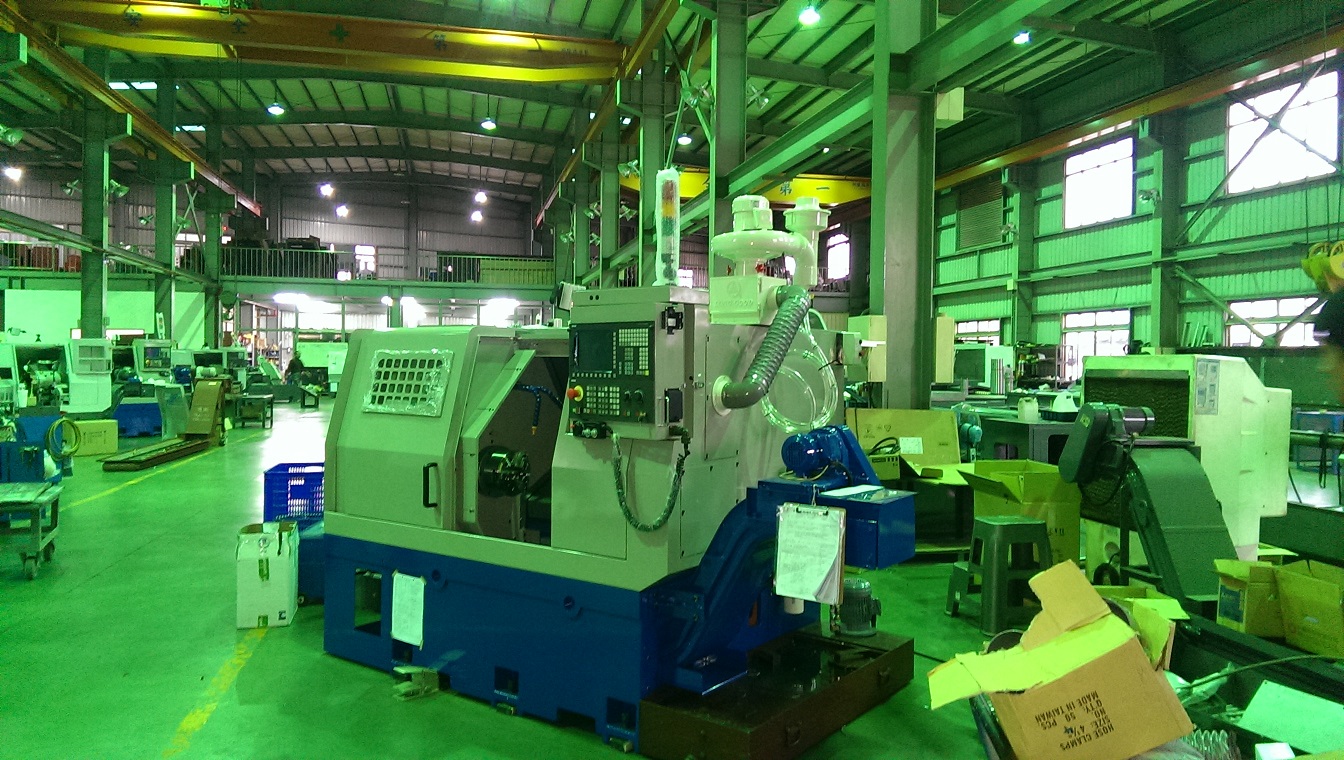

Applications : CNC lathes, CNC milling machines, CNC grinding machines, Part cleaning machines, High-pressure cleaning machines, Automated production lines, and other places that require suction of mist.
Dimension (mm)
Specifications
Frequency (Hz)
50/60
50/60
Power (kW)
0.37
0.37
Inlet/Outlet (inch)
4"(100mm)/4"(100mm)
4"(100mm)/4"(100mm)
Max. Air Flow (m³/min)
7 / 9
7 / 9
Max. Pressure (mmAq)
130 / 150
130 / 150
Phase (Φ)
Three-phase (3Φ)
Three-phase (3Φ)
Pole
2P
2P
Speed (RPM)
2800/3500
2800/3500
Rated Current(A)(220/380V)
1.8/1.0 (50Hz); 2.2/1.3 (60Hz)
1.8/1.0 (50Hz); 2.2/1.3 (60Hz)
Weight (kg)
28
28
Dimension L×W×H (mm)
617*636*586
617*636*586
Noise Value dB(A)
50 / 56
50 / 56
